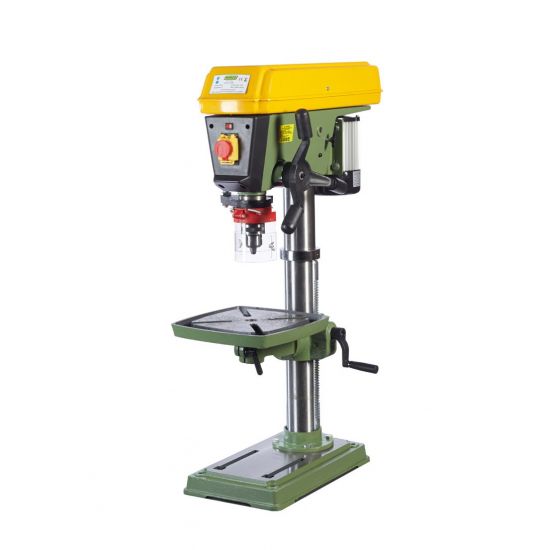

2B12 Bench Drill (Ex Showroom) as new
This product is currently awaiting new stock, but is available for pre-order by calling us on 01428 682929.
02715w
£350.00 Inc. VAT
- Delivery £50
product description
2B12 Bench Drill (Ex Showroom) as new
Reference only:
Very high quality, robust and durable bench mounted drilling machine is well engineered throughout. Suitable for trade, education or home workshop applications.
Features include:
- Start / stop switch incorporates emergency stop
- Fitted with rotary / tilting table
- Positive quill depth stop
- Isolator switch fitted to belt cover
- Tee slotted tables fitted
- Complete with integrated work light
Full Spec:
Model: 2B12(Product Code: 1014B) | |
Product Dimensions: | |
| Weight | 73kg |
| Width x Depth x Height | 375 x 650 x 1015mm |
| Base Width x depth | 270 x 460mm |
| Shipping Dimensions | |
| Length x Width x Height | 930 x 580 x 360mm |
| Package Type (Pallet or box) | Box |
Power/Motor | |
| Motor size | 650W |
| Drive (GH) gearbox (VS) variable speed or (B) Belt | Belt |
| Voltage (240v single) (440v 3 Phase) | 240v Single |
| Fitment (Plug connection type) | 3 pin plug |
| Spindle Bearing type | Sealed Roller Bearing |
| Spindle speeds (No: and achievable speeds) | 16 speed 120-220-270-320-400-450-500-820-950-970-1260-1380-1680-1820-2580-3000 |
Main Specifications | |
| Type (Bench top or floor) | Bench Top |
| Table size (Length x Width x Thickness) | 300 x 305 x 30mm |
| Table Travel Vertical | 440mm |
| Maximum size spindle to Table | 450mm |
| Maximum size spindle to Base | 620mm |
| Throat (Spindle middle to Column face) | 180mm |
| Column diameter | 80mm |
| Spindle Taper size | 2MT |
| Head tilt left to right | n/a |
| Table tilt | 90-90° (45-45° calibrated) |
| Drill chuck capacity and recommended max drill | 16mm / 20mm max |
| Quill diameter | 52mm |
| Quill/Spindle stroke | 85mm |
Features | |
| Laser centre? | X |
| Work light? | Y |
| Digital speed counter? | X |
| Depth stop? | Y |
| Safety interlock guard? | X |
Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | CERT-20210823 TA 385213770(1) |
| Tee slot size and no of slots (A-B-C-D) no: of slots | A=18 B=30 C=5 D=18m 4 slots |
