WM250 Lathe (Variable Speed)

Item No: 3211

£1,900.00 Inc. VAT

£2,375.00 Inc. VAT

Currently 20% OFF for Pre-Orders Only!

Quality, compact & affordable
Metric lathe with variable speed
Includes FREE Accessories
Tested for Accuracy - Report Supplied
Excellent Spare-Parts Availability
12-Month Warranty
Fast & FREE DELIVERY to UK mainland
Questions & Support on Tel: 01428 682929

Stock available in February 2025.

More details

More info
Machine Data Download

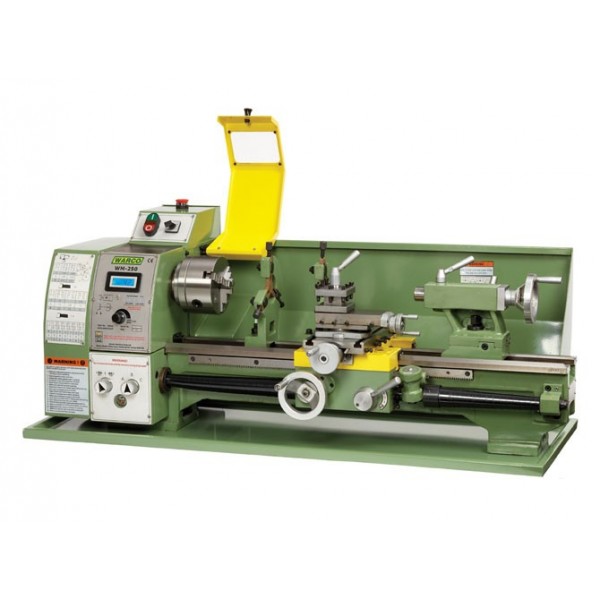

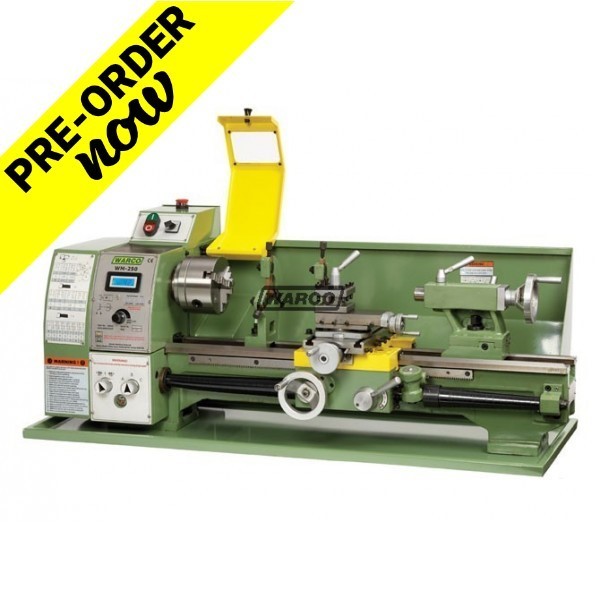

Warco WM250 Variable Speed Lathe (Brushless Motor)

The Warco WM 250 variable speed metal lathe features exceptional Warco quality as standard. Packed with features, high power motor, very solidly built machine with high levels of precision, suitable for a wide range of metalworking tasks.

Lathe features include

Two speed bands allow maximum torque in the lower speeds
Infinitely variable from 30 to 2,350 rpm
Double vee bedway - hardened and ground
Adjustable gibs to slideways
Offset facility to tailstock
Tailstock quill engraved metric and imperial
Reversible motor
Metric and imperial thread cutting
Reversible leadscrew for left hand threading
Thread dial indicator
Zero / friction dials
Powerful 1.1kw motor.

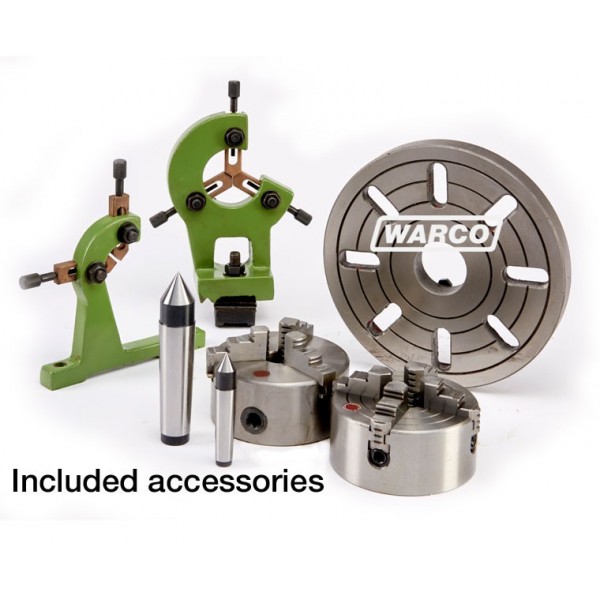

Supplied with a range of accessories and tools, including

Swarf tray
Read splash guard
Face plate
Three jaw 125mm self centre chuck with inside and outside jaws
Four jaw 125mm independent chuck
Fixed steady
Travelling steady
Interlock chuck guard
Two dead centres
Toolbox with tools

Full specification

Machine: 3211	WM250 Brushless Motor lathe
Product Dimensions:
Weight	125kg
Length x Width x Height	1250 x 600 x 490mm
Tray Length x Width	1100 x 420mm
Shipping Dimensions
Length x Width x Height (no DRO)	1250 x 570 x 570mm
Length x Width x Height (DRO version)	n/a
Power/Motor
Motor size	1.1kw
Power Transfer (GH) gearbox or (VS) variable speed	VS
Spindle speeds (No: and achievable speeds)	30-1150 / 85-2350rpm
Voltage (240v single) (440v 3 Phase)	240v Single
Fitment (Plug connection type)	3 Pin Plug
Current	50Hz 2.0A
Main Specifications
Maximum swing	250mm
Centre height	125mm
Distance between centre’s	535mm
Longitudinal travel (Z)	400mm
Cross slide travel (X)	110mm
Top slide travel (fine Z)	75mm
Spindle taper	MT4
Tailstock Taper	MT2
Tailstock quill travel	60mm
Spindle Bore	26mm
Tool shank size recommended for C/L	12mm
Metric and imperial threads	Yes
Chuck mount	Flange
Spindle Bearings /Drive	Taper roller bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	3212ND
Optional Digital Read Out Kit	8123
X scale	5104 - 150mm
Z Scale	5111 - 500mm

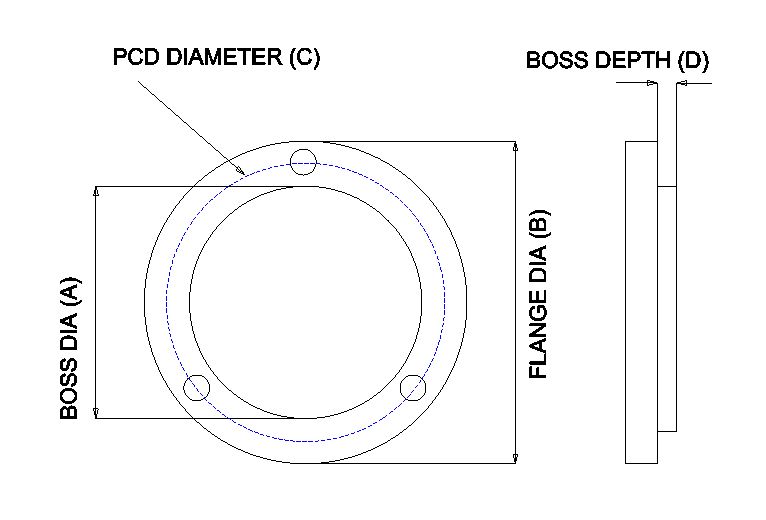

Chuck mount sizes	A= 53.5 Taper B=102 C=74.5 D=11mm

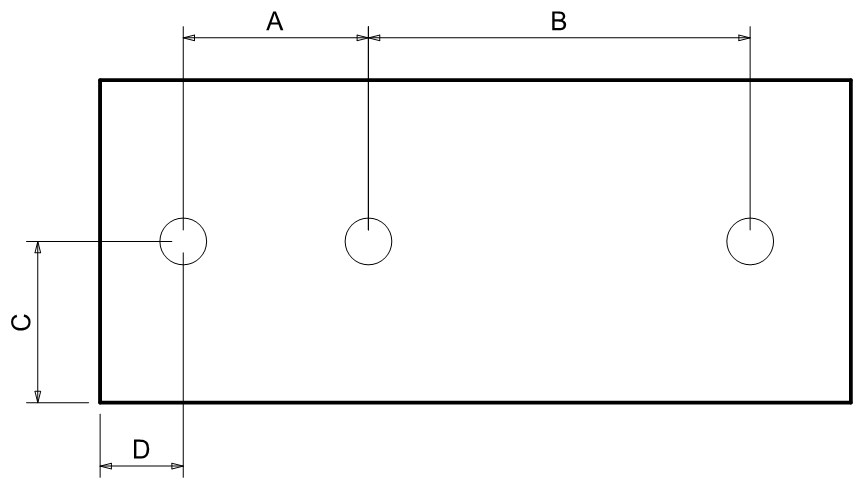

Base/tray fixing holes dimensions A-B-C-D	A= 120 B= 765 C=210 D=115 mm

Order one of these lathes securely online today, or feel free to call us on 01428 682929.

The Warco WM 250

High quality, very robust and accurate lathe.
You can buy with confidence from us because we've been selling lathes just like this for four decades now. In the 40+ years we've been operating, we've always prided ourselves on our after sales service.
Hugely comprehensive range of spare parts also available should you ever need them.
Each machine comes with a 12 month warranty for no extra charge.
Also available - power cross feed version inverter drive of this machine, see the WM 250V Lathe.
Every Warco lathe is tested by a qualified member of our team before leaving our premises, and is supplied with an individual accuracy test report.
The WM 250 is supplied fully assembled and ready to go - once it arrives via our free delivery service, simply plug in and enjoy your new lathe.
Lathe price includes UK mainland delivery.
