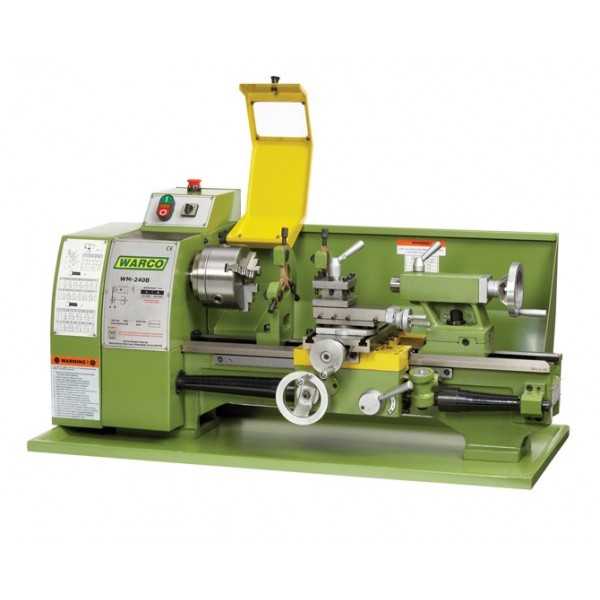

WM240B Belt Drive Lathe

Item No: 2400

£1,436.00 Inc. VAT

£1,795.00 Inc. VAT

Robust, traditional belt-drive lathe
Ideal for the hobby workshop
Supplied fully assembled
Includes FREE Accessories
Tested for Accuracy - Report Supplied
Excellent Spare-Parts Availability
12-Month Warranty
Fast & FREE DELIVERY to UK mainland
Questions & Support on Tel: 01428 682929

More details

Note: Almost sold out!

More info
Machine Data Download

This exceptionally well-built lathe is a direct response to high demand from our customers for a machine with a straightforward metal turning speed selection and the simplicity that a belt-drive offers.

This model is based on our well-established WM240 Variable Speed Lathe, and offering all the same levels of equipment and reliability that you come to expect from a Warco machine.

Features include:

Induction hardened and ground double vee bedway
Adjustable gibs to slideways
Off set facility to tailstock
Range of spindle speeds 125-2000rpm
Large cross slide with two full length tee slots
Powerful reversible motor
Straightforward belt drive with 6 different speeds
Tailstock quill engraved metric and imperial
Metric and imperial thread cutting
Thread dial indicator

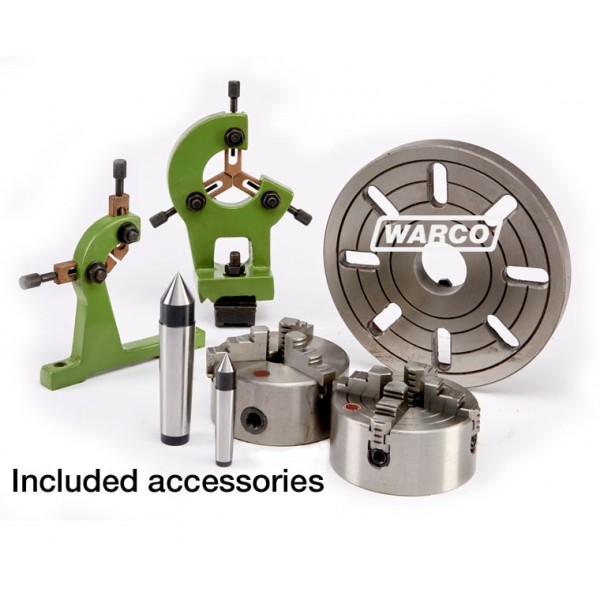

Includes the following FREE accessories:

Swarf tray
Read splash guard
Face plate
Three jaw self centre 125mm chuck, with inside and outside jaws
Four jaw independent 125mm chuck
Fixed steady
Travelling steady
Two dead centres
Tool box and maintenance tools

Full spec:

	Model: WM240B (Product code: 2400)
Product Dimensions:
Weight	110KG
Length x Width x Height	1100 X 530 X 490mm
Tray Length x Width	950 x 420mm
Shipping Dimensions
Length x Width x Height (no DRO)	1040 x 560 x 575mm
Length x Width x Height (DRO version)	n/a
Power/Motor
Motor size	550w
Power Transfer (GH) gearbox or (VS) variable speed	Belt Drive
Spindle speeds (No: and achievable speeds)	125/210/420/620/1000/2000
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3 Pin Plug
Current	50hz, 2.6A
Main Specifications
Maximum swing	250mm
Centre height	125mm
Distance between centre’s	400mm
Longitudinal travel (Z)	270mm
Cross slide travel (X)	120mm
Top slide travel (fine Z)	80mm
Spindle taper	MT3
Tailstock Taper	MT2
Tailstock quill travel	60mm
Spindle Bore	21mm
Tool shank size recommended for C/L	12mm
Metric and imperial threads	Y
Chuck mount	Flange
Chuck mount sizes	52mm boss
Spindle Bearings /Drive	Taper roller Bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 Mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	3224DL
Optional Digital Read Out Kit	8123
X scale	5104 150mm
Z Scale	5108 350mm
Chuck mount sizes	A=52 B=101 C=74.5 D=11
Base/tray fixing holes dimensions A-B-C-D	A=12 B=615 C=210 D=115mm
